Comprehensive Guide to CASE 1021F Wheel Loader Tier 4 Parts
The CASE 1021F Wheel Loader, compliant with Tier 4 emissions standards, is a robust machine designed for heavy-duty applications. To maintain its optimal performance, understanding its various components and their functions is essential. This guide provides an in-depth look at the key parts of the CASE 1021F Wheel Loader, offering detailed insights into each component.
Engine Components
The heart of the CASE 1021F is its powerful engine. Key components include:
- Turbocharger: Enhances engine efficiency and power output by forcing extra air into the combustion chamber.
- Fuel Injectors: Deliver precise amounts of fuel into the engine’s cylinders for optimal combustion.
- Cooling System: Comprises the radiator, water pump, and coolant hoses, working together to regulate engine temperature.
Transmission System
Efficient power transfer is achieved through the transmission system, which includes:
- Powershift Transmission: Provides smooth gear changes under varying load conditions.
- Torque Converter: Transfers rotating power from the engine to the transmission, allowing the loader to handle heavy loads with ease.
- Transmission Control Module: Manages gear shifts and ensures optimal performance.

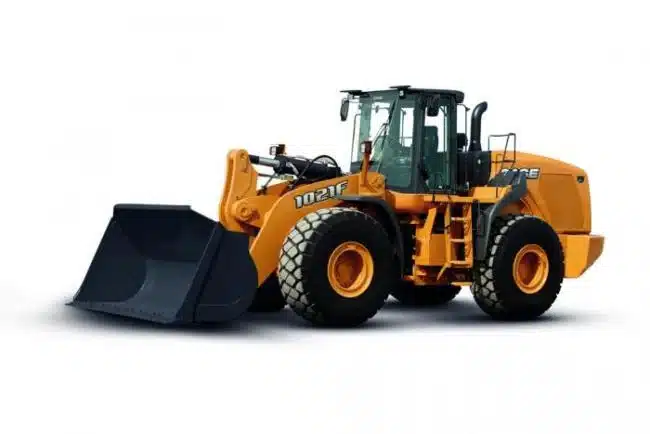

Case 1021f Wheel Loader Tier 4 Parts Catalog Manual
Hydraulic System
The hydraulic system powers the loader’s movements and attachments. Key parts include:
- Hydraulic Pumps: Supply pressurized fluid to the hydraulic circuits.
- Control Valves: Direct the flow of hydraulic fluid to various actuators.
- Lift and Tilt Cylinders: Facilitate the raising, lowering, and tilting of the loader bucket.
Axles and Drivetrain
Stability and mobility are provided by the axles and drivetrain components:
- Front and Rear Axles: Support the loader’s weight and house the differential gears.
- Differentials: Allow wheels to rotate at different speeds, essential for smooth turning.
- Drive Shafts: Transmit torque from the transmission to the axles.
Brake System
Safety is paramount, and the brake system ensures reliable stopping power:
- Service Brakes: Typically wet multi-disc brakes that provide consistent performance.
- Parking Brake: Mechanically actuated to hold the loader stationary when parked.
- Brake Lines and Hoses: Transport hydraulic fluid to actuate the braking mechanism.
Electrical System
The loader’s electrical system comprises:
- Alternator: Charges the battery and powers electrical components.
- Battery: Supplies electrical energy for starting the engine and powering accessories.
- Wiring Harness: Connects various electrical components, ensuring seamless communication and power distribution.
