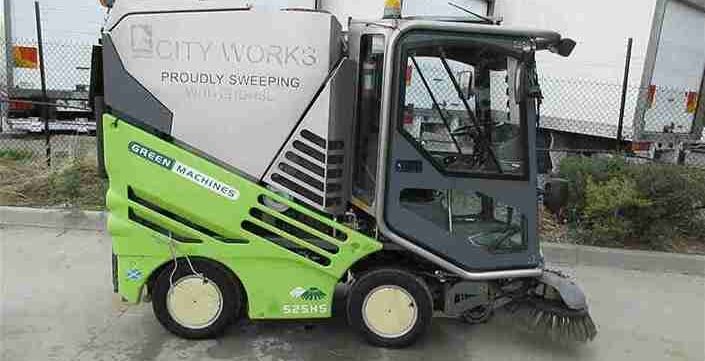

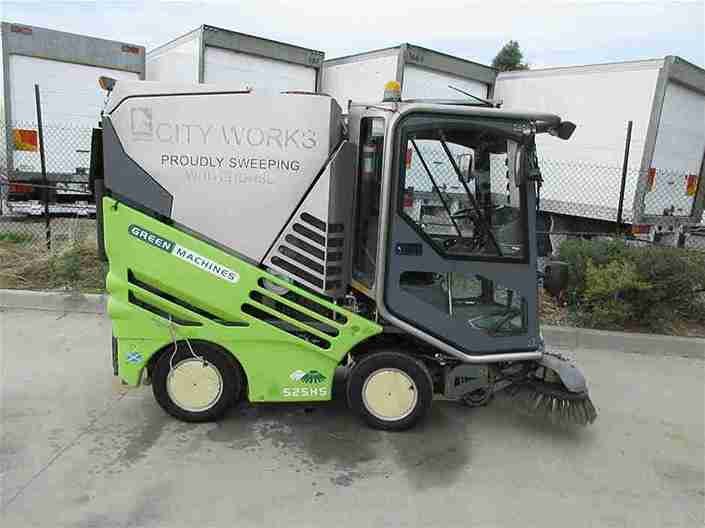

525HS Green Machine Parts Manual Guide
Catalogue Number YM045
The information contained within this document conforms wherever possible to The European Machinery therein are the property of Applied Sweepers Ltd.
The document and any information therein may not be used, copied, or disclosed to any third party without the prior written authorization of Applied Sweepers Ltd.
When ordering parts from this catalog, please ensure you can provide the following:
The Model number of the unit. (on the Chassis Plate)
The Chassis number of the unit. (on the Chassis Plate)
The CIN number of the unit. (on the Chassis Plate)
The part number of the part you require.
If in doubt please refer to your Applied Sweepers Authorized Distributor.
Threaded fasteners – Replacement Hexagon head threaded screws must be Grade 8.8 minimum
and Socket head screws Grade 12.9 minimum except where stated otherwise.
All Nuts must be Grade 8 minimum.
All fasteners must be zinc plated and passivated unless stated otherwise.
Applied Sweepers Limited reserve the right to change and or modify or discontinue to supply the parts listed in this catalog without notice.
Applied Sweepers Limited cannot be held responsible for faults or delays due to parts suppliers
1 MC519 – Cab Seat
1a MC501 – Cab Seat Wedge
2 MC225 – Lap Belt
3 ES243 – XT2
4 GG259 – Knob, Heater Control Valve
4a BB116 – Heater Control Cable
5 HV134 – Brush Pressure Valve
6 WA121 – Needle Valve
7 CP197 – Seat Box Moulding
8 MC222 – Heater Outlet Vent
8a MC344 – Hot Air Duct, Left Hand 300mm lg
9 BB115 – Control Lever/Cable – brush/impeller
9a BB143 – Cable Only 2
10 ES275 – Microswitch,Handbrake
11 MC277 – Bulkhead Bracket, Heater Hose
11a MC280 – Bulkhead Brkt. Gasket, Heater Hose
12 PC114 – Heater Box Hose, Valve to Heater
13 MC221 – Flow/Temperature Control Valve
15 MC342 – Hot Air Duct, 200mm lg.
16 MC397 – Heater Unit c/w connector
18 PC115 – Heater Box Hose, Return
19 MC343 – Hot Air Duct, Crossover 400mm lg.
