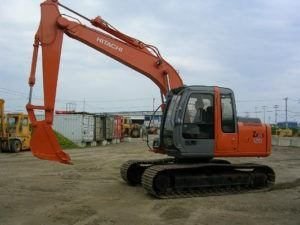

Hitachi Zaxis Zx 110 110m 120 130 130lcn 125us 135us 135ur Workshop Excavator Service Manual
Rated Engine
88 hp (65 kW)
Operating Weight
27,600 lbs (12 500 kg)
Bucket Capacity
0.34 – 1.06 yd3 (0.26 – .81 m3)
ENGINE
* H/P mode control
* E mode control
* 50 A alternator
* Dry-type air filter with evacuator valve
(with safety element)
* Cartrige-type engine oil filter
* Cartrige-type fuel filter
* Radiator and oil cooler with dust protective net
* Radiator reserve tank
* Fan guard
* Isolation-mounted engine
* Auto-idle system
* Auto acceleration system
HYDRAULIC SYSTEM
* Work mode selector
* Engine speed sensing system
* E-P control system
* Quick warm-up system for pilot circuit
* Shockless valve in pilot circuit
* Boom-arm anti-drift valve
* Control valve with main relief valve
* Extra port for control valve
* Suction filter
* Full-flow filter
* Pilot filter
