Hitachi Zaxis Zx 60usb-3 60usb-3f Workshop Excavator Service Repair Manual

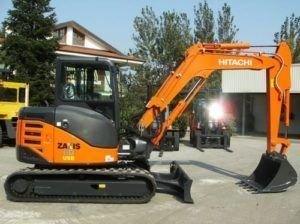

ZAXIS 60USB-3
Engine Rated Power: 54 hp (40.5 kW) @ 2,000 rpm.
Operating Weight: 13,653 lb. (6193 kg).
Backhoe Bucket: 6.8 cu. ft. (0.19 m3).
WARNING Hitachi zaxis zx repair pdf manual
DANGER
CAUTION
DANGER OR WARNING
SAFETY SIGNS
Engine
Manufacturer and Model
Yanmar 4TNV98
Non-Road Emission Standards
certified to EPA interim Tier-4 emissions
Displacement
194 cu in (32 L)
Net Power (ISO9249)
54 hp (405 kW) @ 2,000 rpm
Powertrain
Each track independently driven by hydrostatic axial-piston motor, connected to 2-stage planetary gear-reduction box Maximum Travel Speed.
Low
16 mph (25 km/h)
High
28 mph (45 km/h)
Hydraulics
Closed center, load sensing
Main Pumps
one variable-displacement pump
Maximum Rated Flow
38 gpm (144 L/m)
Pilot Pump
one gear
Maximum Rated Flow
27 gpm (10 L/m)
Auxiliary Flow
225 gpm (85 L/m)
Controls
hydraulic pilot-operated for boom, arm,
