John Deere 410b 410c Backhoe Loader Service Repair Manual

John Deere 410b 410c Backhoe Loader Service Repair Manual

John Deere 410b, 410c, 510b, 510c Backhoe Loader Service Repair Manual

(tm1469)

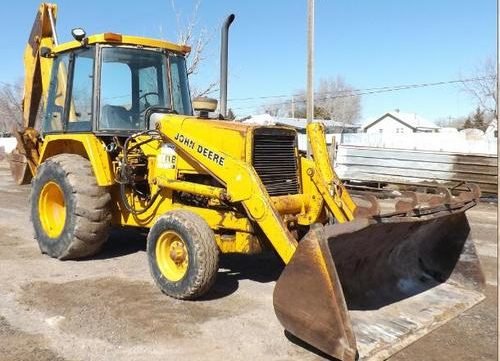

This is the COMPLETE Technical Manual for the John Deere 410B, 410C, 510B, 510C Backhoe Loaders. It contains profound data about keeping up with, get together, dismantling and overhauling your John Deere 410B, 410C, 510B, 510C Backhoe Loaders.

This manual contains data and information to this model. Has specs, graphs, and real genuine photograph representations, shading plans. These specialized manual is hopefully acceptable for Diagnosing, Repairing, and Maintenance John Deere hardware.

Models Covered:

John Deere 410B Backhoe Loader
John Deere 410C Backhoe Loader
John Deere 510B Backhoe Loader
John Deere 510C Backhoe Loader

Technical Manual Contains:

SECTION I – GENERAL INFORMATION
I – Introduction and Safety Information
II – General Specifications
III – Torque Values
IV – Lubrication
V – Inspection Procedure

SECTION 01 – WHEELS
0110 – Powered Wheels and Fastenings
0120 – Non-Powered Wheels and Fastenings
SECTION 02 – AXLES AND SUSPENSION SYSTEMS
0230 – Non-Powered Wheel Axles
0250 – Axle Shafts, Bearings and Reduction Gears

SECTION 03 – TRANSMISSION
0300 – Removal and Installation
0315 – Controls
0325 – Input Drive Shafts and U-Joints
0350 – Gears, Shafts, Housings, Bearings, Differential Lock, Brake and Park Brake
0360 – Hydraulic System

John Deere 410b 410c Backhoe Loader Service Repair Manual

John Deere 410b, 410c, 510b, 510c Backhoe Loader Service Repair Manual
John Deere 410b, 410c, 510b, 510c Backhoe Loader Service Repair Manual
Free shipping by Download
Price: $29.99

SECTION 04 – ENGINE
0400 – Removal and Installation
0413 – Fuel Injection System
0414 – Intake Manifold
0416 – Turbocharger
0417 – Water Pump
0418 – Thermostats, Housing and Water Piping
0419 – Oil Cooler
0420 – Fuel Filter
0421 – Fuel Transfer
0422 – Starting Motor and Fastenings

SECTION 05 – ENGINE AUXILIARY SYSTEMS
0505 – Cold Weather Starting Aids
0510 – Cooling Systems
0515 – Speed Controls
0520 – Intake System
0560 – External Fuel Supply Systems

SECTION 09 – STEERING SYSTEM
0960 – Hydraulic System Steering Valve and Cylinder

SECTION 10 – SERVICE BRAKES
1011 – Active Elements, Brake Disks and Control Linkage
1060 – Hydraulic System Brake Valve

SECTION 11 – PARK BRAKES
1111 – Active Elements
1115 – Controls Linkage

SECTION 16 – ELECTRICAL SYSTEMS
1671 – Batteries, Support and Cables
1672 – Alternator, Regulator and Charging System Wiring
1673 – Lighting System
1674 – Wiring Harness and Switches
1675 – System Controls
1676 – Instruments, Indicators and Senders
1677 – Motors and Actuators

SECTION 17 – FRAME, CHASSIS, OR SUPPORTING STRUCTURE
1740 – Frame Installation
1749 – Chassis Weights

SECTION 18 – OPERATORS STATION
1800 – Removal and Installation
1810 – Operator Enclosure
1821 – Seat and Seat Belt
1830 – Heating and Air Conditioning

SECTION 20 – SAFETY, CONVENIENCE AND MISCELLANEOUS
2004 – Horn and Warning Devices
SECTION 21 – MAIN HYDRAULIC SYSTEM
2160 – Hydraulic System
SECTION 31 – LOADER
3100 – Removal and Installation
3102 – Buckets
3115 – Controls Linkage
3140 – Frames
3160 – Hydraulic System
SECTION 33 – BACKHOE
3302 – Buckets
3315 – Controls Linkage
3340 – Frames
3360 – Hydraulic System

Model Specification: John Deere 410B, 410C, 510B, 510C Backhoe Loaders
Publication number: TM1469
Language: English
Total Pages: 1056
File Format: PDF
Requirements: Adobe PDF Reader
Compatible: All Versions of Windows & Mac, Linux OS, iPhone, iPad, Android etc…
