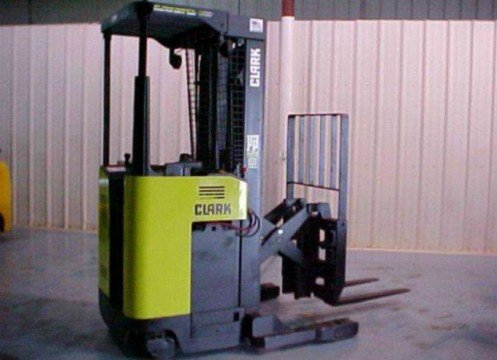

Clark NPR 17, NPR 20 Forklift Service Repair Manual
Service Repair Manual Covers:
- Planned Maintenance Procedures
- Lubrication Chart and Illustrations
- Battery
- Multi-Function Control Handle Switches
- Electric Motors General
- Traction Motors 24 and 36 Volt
- Pump Motors 24 and 36 Volt
- Auxiliary/Steer Pump Motors 24 and 36 Volt
- Contactors
- Electrical Sequence of Operation
- Status Codes
- Oscillator Card Settings
- Steering Control
- Adjustments EV-T5PS
- Wiring Diagrams NPR-345
- Forward and Reverse Switches, Up (Lift) and Down (Lower) Switches and Transducer Adjustments
- Periodic Electrical Checks
- Oscillator Card Remove and Replace
- Solenoid Control Card Trouble Shooting
- Axle, Articulation Adjustment
- Drive Unit
- Traction Wheel and Tire
- Caster Wheel and Tire
- Brake, Motor
- Caster Brake
- Brake Bleeding Procedure
- Brake Pedal Adjustment
- Hydraulic Pressure Checks NPR-345
- Hydraulic Sump Tank Filter and Strainer
- Hydraulic Schematic NPR-345
- Hydraulic Pump Overhaul
- Hydraulic Control Valves and Solenoid Control Valves
- Auxiliary, Reach and Tilt Control Valve
- Reach and Tilt Selector Valve
- Side Shifter Solenoid Control Valve (Optional Equipment)
- Tilt Cylinder Overhaul
- Reach Cylinder Overhaul
- Upright and Pantograph Remove and Replace Roller Shim Adjustments
- Pantograph and Fork Carriage Assembly
- Rail Lift Cylinder Overhaul
- Free Lift Cylinder Overhaul
- Lift Fork Inspection
- Upright Chain Inspection, Adjustment and Replacement
- Load Wheels
- Specifications NPR-345
- Service Weights
- Lubricants and Shop Supplies Easy Reference Listing
Product details:
File Format: PDF
Language: English
Manual Pages: 492
Manual Type: Service Repair Workshop Manual
Compatible: All Versions of Windows & Mac, Android, Linux
